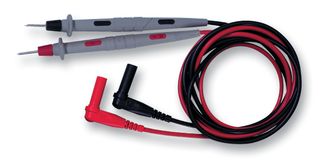

The 5519A from Pomona is a IEC61010 compliant replacement test lead set for sheathed style digital multimeters (DMM). This leads are designed for Fluke, H-P, Tektronix and Wavetek DMM's with a safety of sheathed banana jack. Probe body incorporates two step mould process. First step is polypropylene (PVC) for probe rigidity. Second step is santoprene rubber for handling comfort, insulation protection and wire strain relief. Probe test leads are designed with overvoltage spike protection of up to 6KV.
Operating voltage of 1000V
Rated current of 10A
Probe body and banana plug are moulded directly to wire for robust pull strength
Wire is a high strand count silicone wire for extreme flexibility and high temperature resistance
Wear indication with double insulated silicone leads shows white inner layer for increased safety
Banana plug spring is nickel plated beryllium copper for long insertion life
122cm length, 192 x 41 bare copper 18AWG wire with silicone insulation
