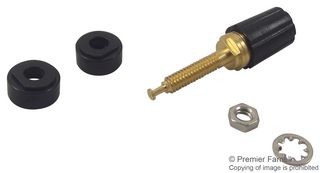

The 3770-0 from Pomona is a standard binding post with low thermal EMF. It accepts standard banana plug, wire or spade lug and can be mounted on panel of thickness ranging from 0.070inch to 0.250inch (1.77mm to 6.35mm).
Brass insulated captive thumb nut
Black colour polycarbonate insulation and mounting base
Nickel plated steel lock washer
#8-32 nickel plated brass hex nut
Gold plated tellurium copper finish
Hand free testing in controlled voltage environment is 2500Vrms maximum
