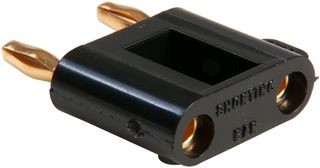

The 2035-0 is a black miniature double Banana Plug with shorting bar, cable mounting, ABS insulation, gold-plated beryllium copper spring and gold-plated brass banana jack (top side) and nickel-plated brass banana plug (bottom side) body. The plug to plug and jack to jack dimension is 0.500-inch (12.70mm) typical for double miniature banana plugs/jacks.
Provides a quick and easy means of shorting two inputs of a miniature double banana jack
ABS body provides insulation protection to user
Shorting adapter has double miniature jacks at topside for stacking capability
