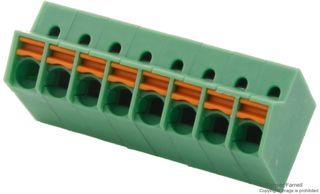

The SPTA 1/8-3.5 is a 8-position 9A green wire-to-board Terminal Block with 65° conductor/PCB connection direction and push-in spring connection. The 1752162 has tin-plated contact surface with polyamide insulator.
UL94V-2 Flammability rating
Compact design with a depth of just 10mm
Easy operation when releasing the conductor via the orange actuating lever
User-friendly and quick conductor connection using Push-in direct plug-in technology
Drilling diagram and dimensions are the same shape as the proven SMKDS 1 screw solution
Arrangement over several rows possible for high packing densities
Different pitches can be combined depending on product range
