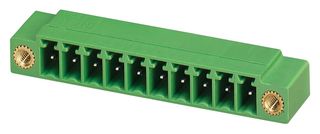

The MC 1,5/10-GF-3,81 from Phoenix Contact is a 10 position through hole right angle terminal block header with 3.81mm pitch. This is a green colour terminal block header with screw flange for superior mechanical stability.
Housing material is polybutylene terephthalate (PBT)
Contact surface is tin
Rated voltage (III/2) is 160V and maximum load current is 8A
Rated surge voltage is 2.5KV
Insulating material group IIIa
cULus recognized E60425-20110128, CSA 13631 and VDE 40011723 certified
Meets IECEE CB DE1-56063-B1B2, CCA and EAC standards
