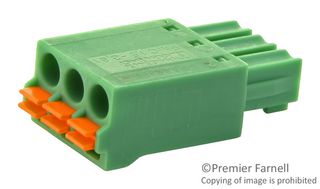

The FMC 1,5/ 3-ST-3,81 from Phoenix Contact is a 3 position pluggable PCB terminal block with 3.81mm pitch spacing. This terminal block with 1.5mm2 nominal cross section area is suitable for wire size ranging from 24AWG to 16AWG.
Green colour housing
Polyamide (PA) insulating material
Dimension of 22.9mm (L) x 7.8mm (H) x 11.92mm (W)
Rated voltage (III/2) is 160V and maximum load current is 8A
Rated surge voltage (II/2) is 2.5kV
Tin contact surface
Time saving push-in spring connection
Insulating material group I
Connection in accordance with EN-VDE and CUL standard
