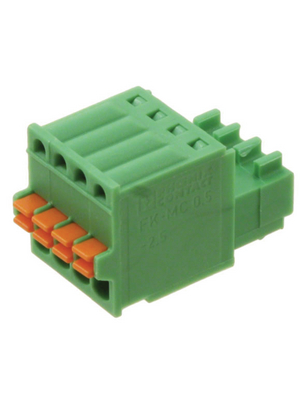

The FK-MC 0,5/4-ST-2,5 is a 4-position green pluggable PCB Terminal Block with tin-plated contacts, a polyamide insulator and the push-in spring connection. This 1881341 terminal block has possible combinations with MC 0,5 and MCD 0,5 base strips with 2.5mm pitch. Individual position coding by removing the coding tab and connecting the coding profile to the header. It accepts 26 to 20AWG wire range.
Convenient operation of the terminal point using a screwdriver
Fast conductor connection thanks to push-in spring-cage connection
Test connection to accommodate ?1mm test connector
