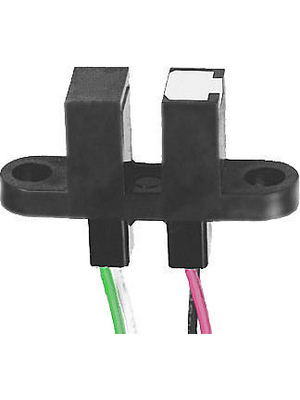

The OPB480 series Photologic? Photo Integrated Circuit Switches provide optimum flexibility for the design engineer. Building from a standard housing with a 0.125" (3.180mm) wide slot, user can specify the type and polarity of TTL output, discrete shell material, aperture width and choice of mounting configurations. OPB480 have 24" (609mm) 26 AWG wires (UL approved wires). All devices in this series may be specified as buffered or inverted with 10kW Pull-up or Open Collector output. Devices are also TTI/LSTTL compatible and can drive up to 10 TTL loads.
Choice of pins or wires mounting configuration
Choice of aperture
Choice of output configurations
Choice of opaque or IR transmissive shell material
