OP133 -

制造商：

OPTEK TECHNOLOGY OPTEK TECHNOLOGY

制造商产品编号：

OP133

仓库库存编号：

3167549

技术数据表：

(EN)

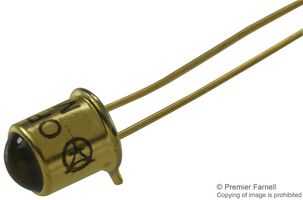

The OP133 is a Hermetic Infrared LED with dome lens. The OP130 series 935nm gallium arsenide (GaAs) infrared LED that provides an enhanced temperature range, offers high power dissipation and superior protection for hostile environments. Each OP130 device has a narrow beam with an inclusive angle at half power points of 18°. Each OP130W series device has a broad irradiance pattern of 50° at half power points, providing relatively even illumination over a large area. This devices is designed to efficiently operate with OP800, OP593, OP598 and OP599 phototransistors or the OP830 photodarlington.

• 0.5" Lead length
• Focused and non-focused optical light pattern
• Mechanically and spectrally matched to other OPTEK devices
