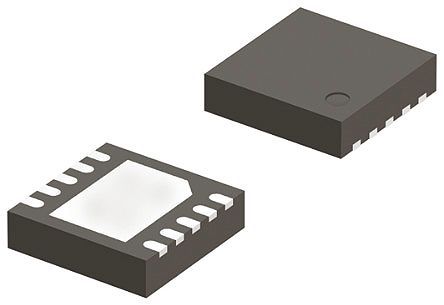

The MMA7660FCR1 is a three axis orientation/motion detection sensor with digital output (I2C) in 10 pin DFN package. It is a very low power and low profile capacitive MEMS sensor featuring low pass filter, compensation for 0g offset, gain errors and conversion to 6bit digital values at user configurable samples per second. The device can be used for sensor data changes, product orientation and gesture detection through an interrupt pin (INT).
Low power current consumption
Configurable 1 to 120 samples per second
Analogue voltage range from 2.4V to 3.6V and digital voltage range from 1.71V to 3.6V
Acceleration of ±1.5g
Sensitivity of 21.33count/g
Auto wake/sleep mode for low power consumption
Tilt orientation detection for portrait/landscape capability
Gesture detection including shake detection and tap detection
Robust design and high shocks survivability of 10000g
