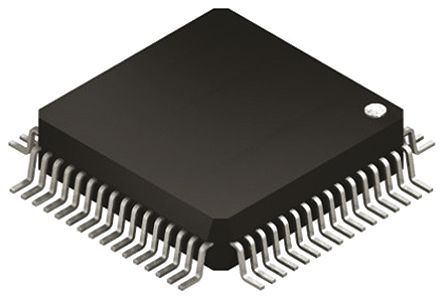

The MKL15Z64VLH4 is a 32-bit Kinetis KL1x Baseline Ultra-low-power Microcontroller based on ARM Cortex-M0+ RISC architecture core operates at a maximum frequency of 48MHz. The device incorporates 64kB internal flash, 8kB internal RAM, one 16-bit SAR A/D converter, one 12-bit D/A converter, general purpose PWM and 54 general-purpose I/O pins. This device also features communication interfaces like three UART modules, two SPI modules and two I2C modules.
48MHz ARM Cortex-M0+ core
Nine low-power modes to provide power optimization based on application requirements
COP software watchdog
4-channel DMA controller, supporting up to 63 request sources
Low-leakage wakeup unit
SWD debug interface and micro trace buffer
Bit manipulation engine
Multi-purpose clock source
1kHz LPO clock
Low-power hardware touch sensor interface (TSI)
Analog comparator (CMP) containing a 6-bit DAC and programmable reference input
