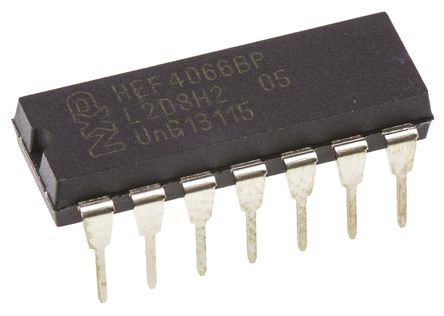

The HEF4066BP is a quad single-pole single-throw Analogue Switch with two input/output terminals (nY and nZ) and an active high enable input (nE). When nE is low, the analogue switch is turned-OFF. This switch is pin compatible with the HEF4016B but exhibit-bit a much lower ON resistance. In addition the ON resistance is relatively constant over the full input signal range.
Fully static operation
Standardized symmetrical output characteristics
Inputs and outputs are protected against electrostatic effects
