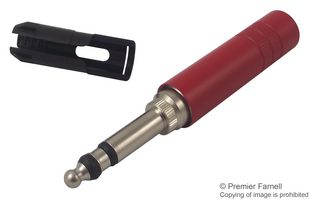

The NP3TB-R from Neutrik is a 1/4" B-Gauge professional phone plug. This phone plug is compliant to B-Gauge standard BPO316. It has similar construction as standard Neutrik phone plugs with chuck type strain relief and slimline metal barrel. It is not compatible with standard 1/4" jacks (according to EIA RS453) and patch panels.
One piece tip conductor ensures secure conductivity
Robust and dependable
Rated voltage is less than 50V
Cable outer diameter range from 4mm to 7mm
Greater than 1000 mating cycles
Wire size is 18AWG (1mm2)
Nickel plated brass solder contacts, polyacetal + PU bushing and polyamide insert material
