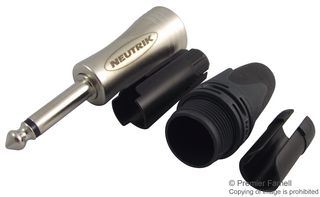

The NP2XL from Neutrik is a 2 pole 1/4'' professional phone plug. This jumboPLUG for thick instrument and loudspeaker cables offers an ergonomic barrel and it has proven chuck type strain relief for reliable cable retention. The precision machined one piece contacts avoid hook up of tip contact.
Robust die-cast shell in stylish design
Ergonomic design for best handling convenience
Rated voltage is less than 50V
Cable outer diameter is less than or equal to 10mm
Wire size is 18AWG (1mm2)
Greater than 1000 mating cycles
Nickel plated brass solder contacts, polyacetal + PU bushing and polyamide insert material
