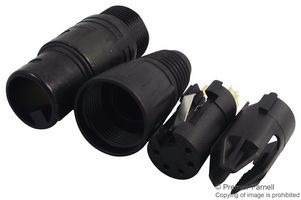

The NC5FX-B from Neutrik is a 5 pole female XLR cable connector in black metal housing. This latch lock device has rugged zinc die-cast shell for long lasting and durability, chuck type strain relief system for secure clamping of cables.
Polyamide (PA 6.6 30 % GR) insert, brass (CuZn39Pb3) contact with gold plating
Zinc die-cast (ZnAl4Cu1) shell with black chromium plating and polyacetal (POM) strain relief
Boot (polyurethan ) with rubber gland gives high protection against bending stresses
Coloured rings and boots available for coding and marking
Dielectric strength of 1.5KVDC
7.5A rated current per contact and rated voltage < 50V
Lifetime > 1000 mating cycles, maximum wire size of 18AWG (1.0mm2)
UL ECBT2.E135070 certified
Flammability rating meets UL 94 HB and IEC 61076-2-103 standard compliance, IP 40 protection class
