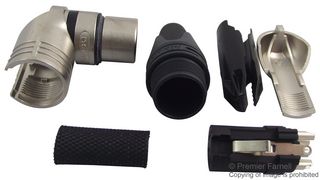

The NC5FRX from Neutrik is a 5 pole right angle extra slim female XLR cable connector with solder contact wiring. This connector has a boot with polyurethane gland gives high protection to cable bending stresses. The female contact incorporates a solder barrier to prevent solder running into the contact mating area, it has unique cage design of female contact for low contact resistance and high integrity. The female connector with improved solid metal latch which is larger and easier to handle. This is a sleek, valuable and handy connector with ergonomic design.
Additional ground spring contacts for better shell ground continuity
Improved chuck type strain relief provides higher pull-out force and makes assembly easier & faster
Polyamide (PA 6.6 30 % GR) insert, brass (CuZn39Pb3) contacts with silver plating
