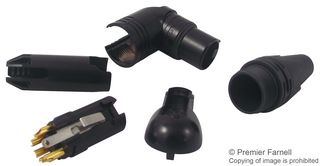

The NC5FRX-B from Neutrik is a 5 pole right angle extra slim female XLR cable connector with solder contact wiring, It has boot with polyurethane gland gives high protection to cable bending stresses. The female contact incorporates a solder barrier to prevent solder running into the contact mating area, it has unique cage design of female contact for low contact resistance and high integrity. This female connector with improved solid metal latch which is larger and easier to handle. This is a sleek, valuable and handy connector with ergonomic design.
Additional ground spring contacts for better shell ground continuity
Improved chuck type strain relief provides higher pull-out force and makes assembly easier & faster
Polyamide (PA 6.6 30 % GR) insert, brass (CuZn39Pb3) contact with gold plating
Zinc die-cast (ZnAl4Cu1) shell with black chromium plating, polyacetal (POM) strain relief
Coloured rings and boots available for coding or identification
Dielectric strength of 1.5KVDC, 7.5A rated current per contact and rated voltage < 50V
Lifetime > 1000 mating cycles, maximum wire size of 18AWG (1.0 mm2)
UL ECBT2.E135070 and cUL ECBT8.E135070 certified
Flammability rating meets UL 94 HB, IEC 61076-2-103 standard compliance, IP 40 protection class
