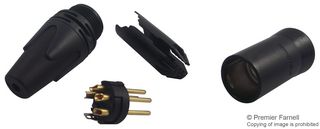

The NC4MXX-B from Neutrik is a 4?pole male XLR cable connector with solder contact wiring. This cable connector has Improved chuck type polyacetal (POM) strain relief provides higher pull-out force which makes fast assembly and an improved locking recess without window, stringent housing increases durability and internal thread on shell is well protected against any damage. This is a sleek, valuable and handy connector with ergonomic design.
Boot with polyurethane gland gives high protection to cable bending stresses
Coloured rings and boots available for coding or identification
Latch lock device
Rugged zinc die-cast shell with black chromium plating for long lasting and dependable
Polyamide(PA 6.6 30 % GR) insert, brass(CuZn39Pb3) contact, zinc die-cast (ZnAl4Cu1) locking element
UL ECBT2.E135070 and cUL ECBT8.E135070 certified
Flammability rating meets UL 94 HB, IEC 61076-2-103 standard compliance, IP 40 protection class
Dielectric strength of 1.5KVDC, 10A rated current per contact and rated voltage < 50V
Lifetime > 1000 mating cycles, maximum wire size of 16AWG (1.5mm2)
