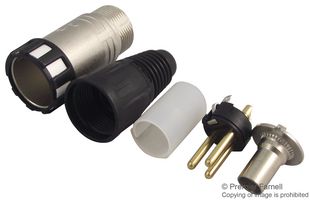

The NC3MXCC from Neutrik is a 3 pole male XLR cable connector. This latch lock device has circumferential shield contact provides excellent RF protection to transmit digital audio signals most efficient, reliable and for best EMI protection.
Rugged zinc die-cast shell, long lasting and durable
Chuck type polyacetal (POM) strain relief system for secure clamping of cables
Boot (polyurethan) with rubber gland gives high protection against bending stresses
XCCR coding ring(PA 6 15% GR) to indicate digital AES signals included
Brass (CuZn39Pb3) contact with gold plating
Polyamide (PA 6.6 30 % GR) insert, zinc die-cast (ZnAl4Cu1) shell with nickel plating
Dielectric strength of 1.5KVDC, 16A rated current per contact and rated voltage < 50V
Lifetime > 1000 mating cycles, maximum wire size of 14AWG (2.5 mm2)
Flammability rating meets UL 94 HB, IEC 61076-2-103 standard compliance
