NC3MX -

音频连接器, XLR, 3 触点, 插头, 电缆安装, 镀银触芯, 金属主体, X系列

声明：图片仅供参考，请以实物为准！

制造商：: NEUTRIK NEUTRIK
制造商产品编号：: NC3MX
仓库库存编号：: 308766
技术数据表：: (EN)

订购热线： 400-900-3095 0755-21000796, QQ:800152669, Email:sales@szcwdz.com

由于产品数据库庞大，部分产品信息可能未能及时更新，下单前请与销售人员确认好实时在库数量，谢谢合作！

NC3MX产品概述

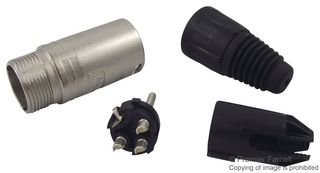

The NC3MX from Neutrik is a 3?pole male XLR cable connector. This connector has a compact design with sturdy, rugged zinc die-cast shell for long lasting and durability and fibreglass reinforced hard plastic insert, chuck type strain relief for secure clamping of all cables.

Polyamide (PA 6.6 30 % GR) insert, brass (CuZn39Pb3) contact with silver plating
Zinc die-cast (ZnAl4Cu1) shell with nickel plating, polyacetal (POM) strain relief
Boot (polyurethan) with rubber gland gives high protection to cable bending stresses
Dielectric strength of 1.5KVDC
16A rated current per contact and rated voltage < 50V
Lifetime > 1000 mating cycles
Maximum wire size of 14AWG (2.5 mm2)
UL ECBT2.E135070 certified
Flammability rating meets UL 94 HB and IEC 61076-2-103 standard compliance, IP 40 protection class
Temperature range from -30°C to +80°C

音频, 消费电子产品
