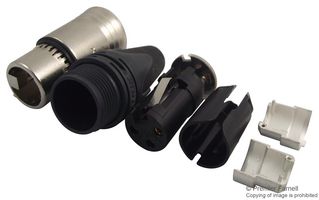

The NC3FXX-EMC from Neutrik is a 3 pole female EMC-XLR cable connector with integrated capacitive shield to shell connection. This cable is specifically designed version of the XX series to give enhanced RF screening for critical applications in live performance and recording where there are particular problems with radio transmission or mobile phones. The design guarantees a continuous RF shield connection from the cable to the chassis connector housing via a circular capacitor around the cable shield. The female connector with circumferential ground spring providing an accurate connection to the mating shell.
Cable shield, pin 1 connection includes EMI suppression bead to block high frequencies
Avoid ground loops as there is no LF-shield connection to ground
Rugged zinc die-cast shell, long lasting and durable
Chuck type polyacetal (POM) strain relief system for secure clamping of cables
Boot (polyurethan) with rubber gland gives high protection against bending stresses
Dielectric strength of 1.5KVDC, 5A rated current per contact and rated voltage < 50V
Polyamide (PA 6.6 30 % GR) insert, bronze (CuSn8) contact with gold plating
Flammability rating meets UL 94 HB, IEC 61076-2-103 standard compliance, IP 40 protection class
Lifetime > 1000 mating cycles, maximum wire size of 20AWG (0.75mm2)
