NC3FXCC -

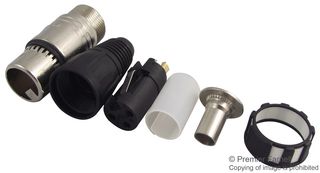

音频连接器, XLR, 3 触点, 插座, 电缆安装, 镀金触芯, 金属主体, X系列

声明：图片仅供参考，请以实物为准！

制造商：: NEUTRIK NEUTRIK
制造商产品编号：: NC3FXCC
仓库库存编号：: 3886177
技术数据表：: (EN)

订购热线： 400-900-3095 0755-21000796, QQ:800152669, Email:sales@szcwdz.com

由于产品数据库庞大，部分产品信息可能未能及时更新，下单前请与销售人员确认好实时在库数量，谢谢合作！

NC3FXCC产品概述

The NC3FXCC from Neutrik is an RF-protected 3 pole female XLR cable connector. This cable connector with a circumferential shield contact for best EMI protection, rugged zinc die-cast shell for long lasting and durability and has chuck type strain relief system for secure clamping of cables.

Polyamide (PA 6.6 30 % GR) insert, bronze (CuSn8) contact with gold plating
Zinc die-cast (ZnAl4Cu1) shell with black nickel plating and polyacetal (POM) strain relief
Nickel plated CuSn6 circumferential ground spring, nickel plated CuZn39Pb3 crimp ferrule
Boot (polyurethan) with rubber gland gives high protection against bending stresses and coding ring
Dielectric strength of 1.5KVDC
16A rated current per contact and rated voltage < 50V
Lifetime > 1000 mating cycles, maximum wire size of 14AWG (2.5mm2)
Flammability rating meets UL 94 HB, IEC 61076-2-103 standard compliance, IP 40 protection class
UL recognized
Temperature range from -30°C to +80°C

音频, 消费电子产品
