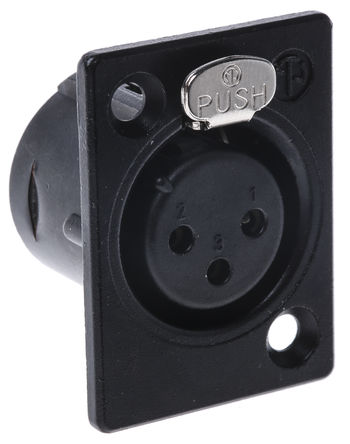

The NC3FP-1 from Neutrik is a 3 pole female XLR receptacle chassis connector. This is smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.
Short female receptacle in front mounting direction, 'P' chassis shape
Polyamide (PA 6.6 30 % GR) insert, bronze (CuSn6) contact with silver plating
Zinc die-cast (ZnAl4Cu1) shell with nickel plating and steel Ck67 locking element
Compatible with Switchcraft D*M, D*F, Cannon XLB2*31, XLB2*32 series connector
Dielectric strength of 1.5KVDC, 16A rated current per contact and rated voltage < 50V
