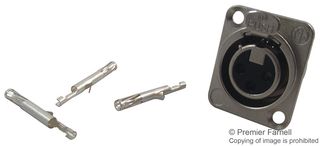

The NC3FD-LX-HA from Neutrik is a 3 pole female XLR receptacle chassis connector with standard B crimp termination. Metal housing of receptacle offers best overall RF protection and electromagnetic shielding, new duplex ground contact for excellent contact integrity between chassis and cable connector. The unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact.
D style housing provides installation compatibility with industry standard D mounting dimensions
Optional connection to easily join pin1 to chassis ground
Latch lock device, steel Ck67 locking element
Dielectric strength of 1.5KVDC, 1A rated current per contact and rated voltage < 50V
Lifetime > 1000 mating cycles, wire size range from 24 AWG to 22AWG (0.22mm2 - 0.34 mm2)
Polyamide (PA 6.6 30 % GR) insert, bronze (CuSn6) contact with silver plating
Zinc die-cast (ZnAl4Cu1) shell with nickel plating
Flammability rating meets UL 94 HB, IEC 61076-2-103 standard compliance, IP 40 protection class
