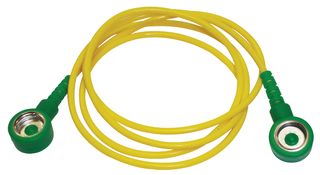

The 28503 is a 1m Ground Connecting Cord with the body housing shall contain a 10mm female snap, with 1MR resistor, joined in series to the conductor with another 10mm female snap without resistor on the other end. The ground end of the cord is moulded with single nylon material (strain relief/body housing). The conductor is diameter is 2.5mm with 7tinsel wires and the insulation of the straight cord is insulated with polyurethane material. All metal parts shall show no evidence of corrosion and rust after 24 hours submersion to salt solution. Preferably made from stainless steel or brass alloy plated with nickel, antistatic nylon moulded ends and chips.
- Straight cord available in yellow colour, moulded ends and chips in PMS340 green colour
- 1MR ±20% EOS/ESD-S1 Current limiting resistance
