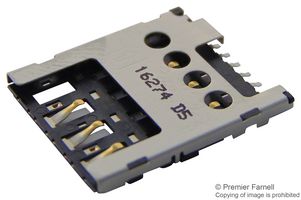

The 78646-3001 from Molex is a shielded 1.45mm height push-pull micro-SIM card socket without detect switch. This SIM card socket is made of titanium copper material with gold over nickel material plating.
Front card entry location
6 circuits (loaded)
Maximum durability of 1500 mating cycles
Pitch of SIM card socket is 1.27mm
Surface mount termination interface style
Operating temperature range from -30°C to +85°C
Maximum 0.5A current per contact, maximum 15VDC voltage
