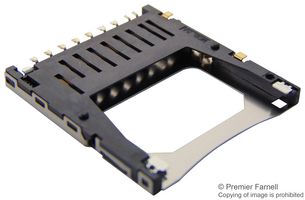

The 67600-8001 from Molex is a 2.5mm pitch shielded SD memory card connector for used with SD card. This SD card connector is made of brass, piano wire, stainless steel material with gold, tin plating.
90° side entry angle
9 circuits (loaded)
Maximum durability of 10000 mating cycles
High temperature thermoplastic resin material
Surface mount termination interface style
Operating temperature range from -40°C to +90°C
Maximum 0.5A current per contact, maximum 250V DC voltage
Black colour resin
Normal PCB mounting side with PCB retention
Ultra low profile with PCB locator without Mylar & push-push style
