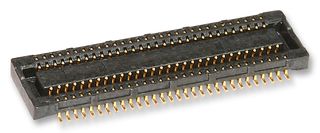

The 54722-0224 from Molex is a 0.5mm pitch dual row, SlimStack receptacle. This receptacle is made of phosphor bronze material with gold plating and gold termination plating. It mates with 55560 PCB header.
Vertical orientation
22 circuits (loaded), PCB retention
Maximum durability of 30 mating cycles
High temperature thermoplastic resin material
Surface mount termination interface style
Operating temperature range from -40°C to +105°C
Maximum 0.5A current per contact, maximum 50V voltage
