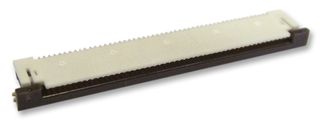

The 54104-5033 is a 50-circuit 1-row 0.50mm pitch Easy-On? Type FFC/FPC Right Angle Connector, ZIF receptacle, top contact style and tin silver bismuth plated phosphor bronze contacts. This 54104 series connector is made of nylon, has surface mount termination and mates with Molex Premo-Flex FFC. The FFC/FPC connector is available with actuator, which are pre-assembled covers that secure the connection between the FFC/FPC and the connector terminals.
- Narrower width and shorter length dimensions - Provides additional space savings
- Movable terminals - Ensures more secure contact retention
- Dual-contact design
- Housing designs highlight FPC tabs - Assures proper cable seating
- Actuators reinforcements for large circuit sizes - Actuator reinforcements for large circuit sizes
- Natural colour
- UL94V-0 Flammability rating
- 0.5A Current rating per contact
- 50V Voltage rating
- -40 to 85°C Temperature range
消费电子产品, 安全, 通信与网络, 计算机和计算机周边, 便携式器材, 医用, 音频
