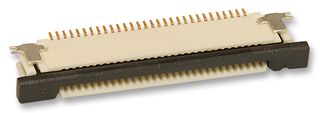

The 52435-2471 is a 24-circuit 1-row Easy-On? Type FFC/FPC Right Angle Connector, top contact style receptacle, gold-plated phosphor bronze contacts and surface mount termination. This 52435 series connector is made of nylon, mates with Molex Premo-Flex FFC. The FFC/FPC connector is available with actuator, which are pre-assembled covers that secure the connection between the FFC/FPC and the connector terminals.
- Narrower width and shorter length dimensions - Provides additional space savings
- Movable terminals - Ensures more secure contact retention
- Dual-contact design
- Housing designs highlight FPC tabs - Assures proper cable seating
- Actuators reinforcements for large circuit sizes - Actuator reinforcements for large circuit sizes
- UL94V-0 Flammability rating
- 0.5A Current rating per contact
- 50V AC/DC Voltage rating
- -40 to 85°C Temperature range
