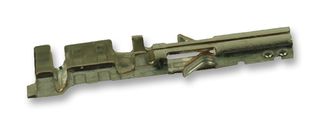

The 43030-0004 is a Micro-Fit 3.0? female socket Crimp Terminal made of phosphor bronze with tin plated finish. This 43030 series female crimp terminal accepts 30 to 26AWG wire. The socket terminal mates with 43031 Micro-Fit 3.0? male crimp terminals. It can be used with 43025, 43645 Micro-Fit 3.0? receptacle housings and 44133 Micro-Fit BMI? panel mount receptacle housings. The terminal is suitable for power applications.
- Locking tang on terminal secures terminals in housings
- 5A Maximum current per contact
