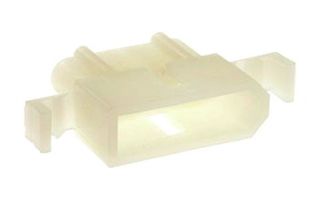

The 03-06-2011 is a 1-way 1-row 0.062-inch standard pin and socket Plug Housing made of nylon. It mates with 03-06-1011 receptacle housing. The crimp housing is suitable for power and wire-to-wire applications. This 1625 series plug housing can be used with 1561, 4559, 4529, 2190, 2189, 1787, 1855 female crimp terminals, 1560, 1786, 1854 male crimp terminals, 1778 male PC tail terminals and 1779 female PC tail terminals. Nylon housings and robust terminal design create a durable, long lasting product.
- Natural color
- UL94V-2 Flammability rating
- Secure mating of the housings
- Polarized to mating part
- 5A Maximum current per contact
电源管理, 消费电子产品, 计算机和计算机周边, 通信与网络
