E192-24-25 -

制造商：

MICROMOTORS MICROMOTORS

制造商产品编号：

E192-24-25

仓库库存编号：

1784837

技术数据表：

(EN)

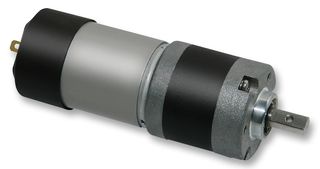

The E192-24-25 is an E192 Series 21.1W/24VDC Geared Motor with 118RPM rotational speed, 90N-cm maximum torque. This motor features motor interference suppression by VDR and capacitors, direction of rotation depending on polarity, can be mounted in any position, low-backlash precision grade planetary gearboxes with dual bearing output shaft support for maximum life and load-carrying capacity, offers 25:1 gear ratio, brushed DC drives fitted with interference-suppression electronics, motor termination is via convenient spade terminals. They are equipped with rear-output shaft as an optional to mount an encoder or position sensor.

• 40.5mm Diameter
• 93mm Length
• -20 to 60°C Temperature working range
