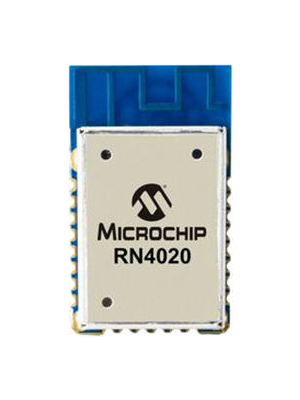

The RN4020-V/RM120 is a Bluetooth? Low Energy Module provides a highly integrated solution for delivering low power Bluetooth 4.1 solutions. The advanced command interface offers rapid time to market. The module complies with Bluetooth specification version 4.1. It integrates RF, a baseband controller, command API processor, making it a complete Bluetooth low energy solution. It can be used with either low cost microcontroller for intelligent Bluetooth low energy applications. For simple sensor applications, the RN4020 internal scripting capabilities enable basic functions to be implemented without the need for external host MCU or software development tools. The fully-certified, Bluetooth version 4.1 low energy module for designers who want to easily add low power wireless capability to their products. The small form factor, surface mount module has the complete Bluetooth stack on-board and is controlled via simple ASCII commands over the UART interface.
- On-board embedded Bluetooth low energy stack
- Simple ASCII command interface over UART
- Multiple IOs for control and status
- Secure AES128 encryption
- GAP, GATT, SM, L2CAP and integrated public profiles
- Create custom services using command API
- Data streaming with microchips low energy data profile (MLDP)
- Scripting for standalone module operation with analog and digital data collection
- 7dBm Transit power for 100m+ range
- Field-upgradeable via the UART interface or over-the-air
- Software configurable role as peripheral or central, client or server
- Low power modes
- UART interface, GPIO, ADC
- 64kB Internal serial flash
- Castellated SMT pads for easy and reliable PCB mounting
