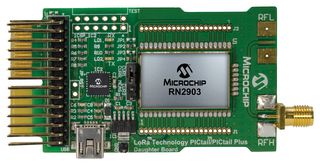

The RN-2903-PICTAIL from Microchip is a RN2903 LoRa Technology PICtail/PICtail Plus daughter board. The RN2903 LoRa Technology PICtail/PICtail Plus daughter board is a development board that showcases the Microchip RN2903 low-power long range, LoRa technology transceiver module. Development of a LoRa system with the RN2903 connected to Microchip's PIC MCU line is possible on PIC18 Explorer boards via the 28-pin PICtail connector or on Explorer 16 boards using the 30-pin card edge PICtail Plus connector. The PICtail board also has an on-board PIC18 MCU available for custom user functions. It is pre-programmed to provide a simple USB-to-UART serial bridge enabling easy serial connection. Demonstration of the RN2903 is performed by plugging the daughter board into a USB port of a PC. The USB port powers the daughter board and enables the user to communicate using the RN2903's simple ASCII command interface.
SMA connector for 915MHz band
Solder pads around the module for GPIOs, power pins and communication signals
Supply current measurement points
Onboard LDO, UART traffic LEDs, USB connector
ICSP header to program the on-board PIC18 MCU
PICtail connection interface, PICtail Plus connection interface, PIC18 MCU for custom functions
