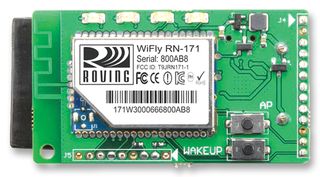

RN-171-EK is an 802.11 b/g WiFi evaluation kit for the RN171 module that can be used to quickly add WiFi connectivity to embedded applications. It has the flexibility to connect directly to a PC via a standard USB interface or to embedded processors through the TTL/UART interface. The board includes 2 convenient pushbuttons for controlling both SoftAP and WPS mode without software configuration. The status LEDs and jumpers enable rapid prototyping and integration into existing systems. The RN-171-EK can be powered by both a USB cable (included in the kit) or batteries. The board contains a battery boost circuit which makes it possible to power the board using two AAA batteries (the input voltage can go down to 2.0V DC when using the battery boost circuit).
Ultra low power
Complete on board TCP/IP networking stack
Configurable transmit power of 0dBm to +12dBm
UART hardware interface
Up to 1Mbps data rate over UART
Pushbuttons for AP/WPS mode and reset signals
Real time clock for wakeup and time stamping
Supports both Adhoc and SoftAP mode (including SoftAP for Android)
10 general purpose digital I/O pins
8 analog sensor interfaces; configurable sensor power outputs 0 to 3.3V DC
