PKSERIAL-SPI1 -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

PKSERIAL-SPI1

仓库库存编号：

1617325

技术数据表：

(EN)

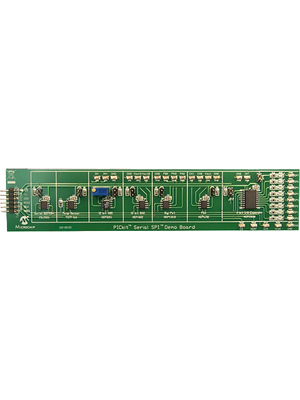

The PKSERIAL-SPI1 is a PICkit serial SPI demo board demonstrates SPI serial communications and operation of the following devices 2K SPI bus serial EEPROM(25LC020A), thermal sensor with SPI interface(TC77-5.0), 2.7V 12bit A/D Converter with SPI Serial Interface(MCP3201), 12bit DAC with Internal VREF and SPI Interface(MCP4822), single/dual digital potentiometer with SPI Interface(MCP41010), single ended, rail to rail I/O, low Gain PGA(MCP6S92) and 8bit I/O expander with serial interface(MCP23S08). The PICkit serial SPI demo board devices all operate in the SPI slave mode and can easily be connected to virtually any demo or development board by connecting the communications lines to connector P1. The PICkit Serial analyser has only one active low chip select (CS) line. Individual devices are enabled by inserting the 2 pin shunt onto jumper JP1 through JP7 to connect the CS line to the device. Only one jumper should be inserted at a time.

• Seven unique devices with SPI interfaces
• Test points on the SPI bus and most of the devices
• Connector for directly connecting to an SPI bus or PICkit serial analyser
