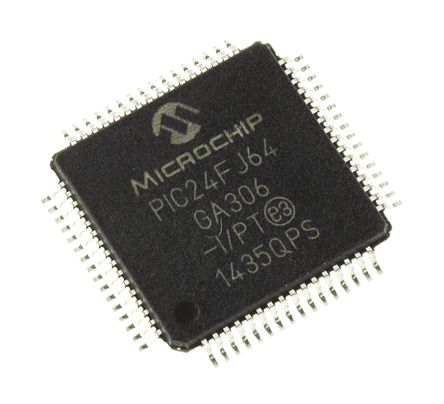

The PIC24FJ64GA306-I/PT is a 16-bit 64-pin 64kB flash General Purpose Microcontroller with LCD controller and XLP technology. The PIC24F 16-bit microcontroller featuring nanoWatt XLP for eXtreme low power consumption. The device includes advanced low power features including a low voltage sleep mode that maintains the device state and RAM with a typical current of 340nA and a Vbat pin that automatically transitions to the RTCC to a battery supply when Vdd is removed. The family is also includes a 480 segment LCD driver with 60 segment x 8 common drive capability. The combination of feature make the part ideally suited to a number of battery powered and general purpose applications.
High-performance CPU - Up to 16 MIPS performance and single cycle instruction execution
Peripherals - Peripheral pin select allows I/O remapping of many peripherals in real time
System - Watchdog timer with separate RC oscillator and fail-safe clock monitor
