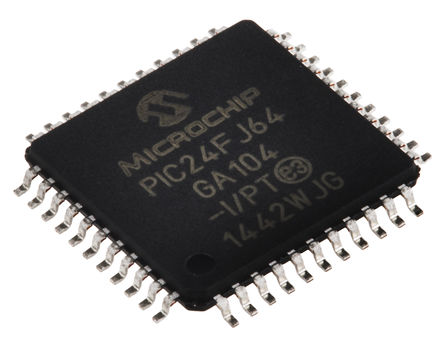

The PIC24FJ64GA104-I/PT is a 16-bit general purpose Flash Microcontroller with nanoWatt XLP technology. The low power microcontroller features 64kB flash memory, 8kB RAM and advanced peripherals. The PIC24FJ64GA104 family provides an expanded peripheral feature set and a new option for high-performance applications which may need more than an 8-bit platform, but do not require the power of a digital signal processor. The PIC24F CPU has a 16-bit (data), modified Harvard architecture with an enhanced instruction set and a 24-bit instruction word with a variable length opcode field. The Program Counter (PC) is 23 bits wide and addresses up to 4M instructions of user program memory space.
High-performance CPU - Up to 16 MIPS performance and C compiler optimized instruction set
System - On-chip LDO voltage regulator, JTAG boundary scan and flash memory program support
nanoWatt power managed modes - Run, idle and sleep modes
Analogue - 10-bit ADC, 13 channels, 500kSPS
Peripherals - Peripheral pin select (PPS) for remapping digital peripherals to I/O
Selectable power management modes with nanoWatt XLP technology for extremely low power
Self-reprogrammable under software control
Fail-safe clock monitor operation
On-chip 2.5V regulator
Two flexible watchdog timer (WDT) for reliable operation
In-Circuit Serial Programming? (ICSP?) and In-Circuit Debug (ICD) via 2 pins
