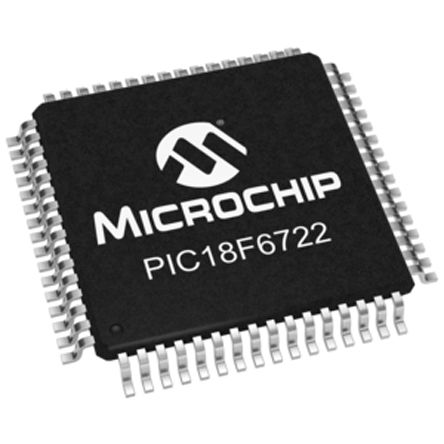

The PIC18LF6722-I/PT is an Enhanced Flash Microcontroller with 10-bit A/D and nanoWatt technology. Ideal for large low power (nanoWatt) and connectivity applications that benefit from the availability of four serial ports of double synchronous serial ports (I2C? and SPI?) and double asynchronous (LIN capable) serial ports. Large amounts of RAM memory for buffering and flash program memory make it ideal for instrumentation panels, TCP/IP enabled embedded applications as well as metering, industrial control and monitoring applications. The PIC18F6722 have 128kB of flash memory and can store up to 65536 single-word instructions.
- Power management - Run, idle and sleep modes
- Flexible oscillator structure - Four crystal modes, up to 40MHz and internal oscillator block
- Peripheral - Three programmable external interrupts and four input change interrupts
- 100 years Typical flash/data EEPROM retention
- Self-programmable under software control
- Priority levels for interrupts
- Extended watchdog timer (WDT)
- Single-supply 5V In-Circuit Serial Programming? (ICSP?) via two pins
- In-Circuit Debug (ICD) via two pins
