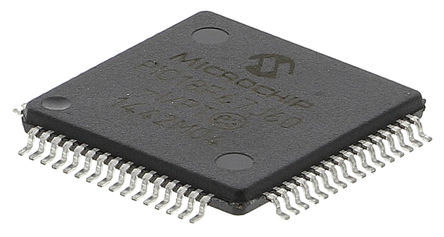

The PIC18F67J60-I/PT is a 1Mbit, high performance 8bit flash microcontroller in 64 pin TQFP package. The device has five timer modules (timer0 to timer4), four external interrupt pins, two capture/compare/PWM (CCP) modules, three enhanced capture/compare/PWM (ECCP) modules and dual analogue comparators with input multiplexing.
- IEEE 802.3 compatible Ethernet controller
- Fully compatible with 10/100/1000Base-T networks
- 128KB of flash program memory
- 3808bytes of SRAM data memory and 8192bytes of Ethernet TX/RX buffer
- 39 I/O pins
- 10bit, 11 channel A/D converter
- Clock speeds of up to 41.667MHz
- Operating voltage range from 2.35V to 3.6V (3.1V to 3.6V using Ethernet module)
- EUSART, I2C and SPI interfaces
- Operating temperature range from -40°C to 85°C
