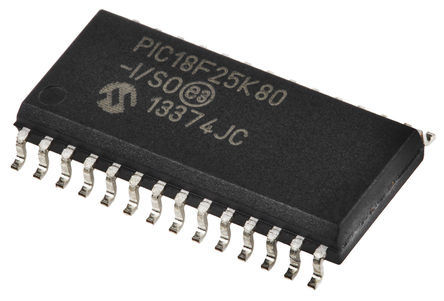

The PIC18F25K80-I/SO is a 8-bit high-performance enhanced Flash Microcontroller with nanoWatt XLP technology and integrated ECAN? featuring eXtreme low power consumption. New features in PIC18F25K80 include low sleep current for low power application, 1.8V to 5.5V operating voltage for building control and elevator control application, timers/enhanced compare/capture/PWMs for precision timing control, 12-bit ADC for advance analogue interface and charge time measurement unit for easy capacitive touch user interface. Charge time measurement unit (CTMU) supports touch sensing and advanced sensing applications.
20nA Sleep mode (watch webinar)
300nA Watch dog timer operation in sleep modes
Integrated ECAN? conforming to CAN 2.0B active specification
Extreme low power sleep mode ideal for battery applications
4 Capture/compare/PWM modules and 1 enhanced capture/compare/PWM modules
1 MSSP serial ports for SPI or I2C? communication
2 Enhanced USART modules
Two analogue comparators
Self programming flash supports 10k erase/write cycles and 20-year retention
DeviceNet? data byte filter support
Six programmable receive/transmit buffers
Three dedicated transmit buffers with prioritization
