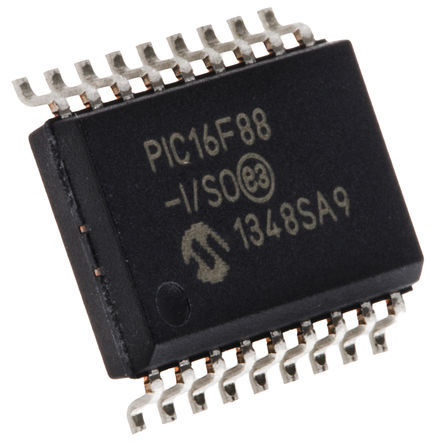

The PIC16F88-I/SO is a 8-bit CMOS Flash-based Microcontroller. The PIC16F88 features 8MHz internal oscillator, 256 bytes of EEPROM data memory, a capture/compare/PWM, an addressable USART, a synchronous serial port that can be configured as either 3-wire Serial Peripheral Interface (SPI?) or the 2-wire Inter-Integrated Circuit (I2C?) bus, 7 channels of 10-bit Analogue-to-digital (A/D) converter and 2 comparators that make it ideal for advantage analogue/integrated level applications in appliances.
Two-speed oscillator start-up
Oscillator - Two external RC modes and up to 20MHz ECIO external clock mode
EEPROM data retention of >40 years
In-Circuit Serial Programming? (ICSP?) via two pins
