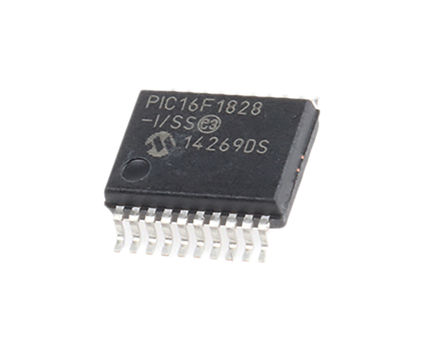

The PIC16F1828-I/SS is a 20-pin Flash Microcontroller with XLP technology. This family of devices contain an enhanced mid-range 8-bit CPU core. The CPU has 49 instructions. Interrupt capability includes automatic context saving. The hardware stack is 16 levels deep and has overflow and underflow reset capability. The microcontroller with direct, indirect and relative addressing modes. Two file select registers (FSRs) provide the ability to read program and data memory. The enhanced mid-range core has a 15-bit program counter capable of addressing a 32k x 14 program memory space.
Flash program memory with self read/write capability
Integrated capacitive mTouch sensing module
Data signal modulator module
CVREF can be used as 5-bit DAC
MI2C, SPI, EUSART with auto baud
2 ECCP and 2 CCP (enhanced/capture compare PWM)
Comparators with selectable voltage reference
12-channel 10-bit ADC with voltage reference
25mA Source/sink current I/O
Four 8-bit timers (TMR0/TMR2/TMR4/TMR6)
One 16-bit Timer (TMR1)
Extended watchdog timer (EWDT)
Enhanced power-on/off-reset
Brown-out reset (BOR)
In-Circuit Serial Programming? (ICSP?)
On board in-circuit debug
Extreme low-power management
Analogue-to-digital converter (ADC) module - 10-bit resolution, up to 12 channels
