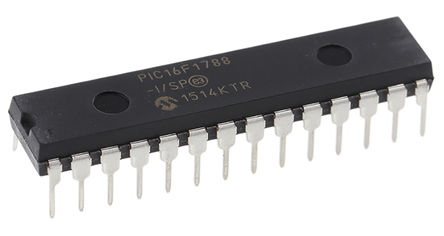

PIC16F1788-I/SP -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

PIC16F1788-I/SP

仓库库存编号：

2352471

技术数据表：

(EN)

The PIC16F1788-I/SP is a 8-bit 28-pin Advanced Analogue Flash Microcontroller with high-performance RISC CPU. During interrupts, certain registers are automatically saved in shadow registers and restored when returning from the interrupt. This device has an external stack memory 15-bits wide and 16 words deep. A stack overflow or underflow will set the appropriate bit (STKOVF or STKUNF) in the PCON register and if enabled will cause a software reset. There are two 16-bit file select registers (FSR). FSRs can access all file registers and program memory, which allows one data pointer for all memory. There are 49 instructions for the enhanced mid-range CPU to support the features of the CPU. The enhanced mid-range core has a 15-bit program counter capable of addressing a 32k x 14 program memory space.

• Flash program memory with self read/write capability
• 256-byte of EEPROM
• 4 x PSMC (programmable switch mode controller) - Dedicated 16-bit PWM
• Digital or analogue feedback control of PWM frequency
• Dead-band control or auto-shutdown and restart
• 4 x Fast comparators with selectable voltage reference
• 2 x Operation amplifiers (rail-to-rail input and output)
• 11 x 12-bit ADC with voltage reference
• 8-bit DAC
• 3 x 5-bit DAC

• MI2C/SPI/EUSART with auto baud
• 3 x Compare-capture-PWM
• Two 8-bit timer (TMR0/TMR2)
• One 16-bit Timer (TMR1)
• Extended watchdog timer (EWDT)
• 25mA Source/sink current I/O
• Enhanced power-on/off-reset
• Brown-out reset (BOR)
• In-Circuit Serial Programming? (ICSP?)
