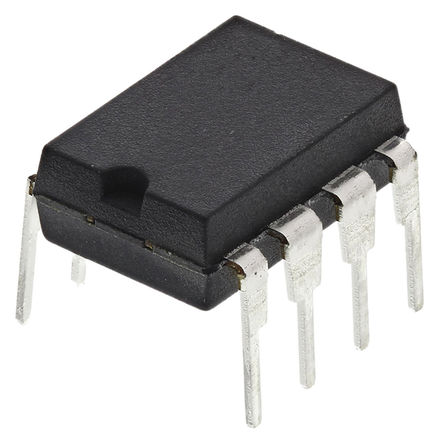

The MCP3201-CI/P is a 12-bit Analogue-to-digital Converter (ADC) with on-board sample and hold circuitry. The device provides a single pseudo-differential input. Differential Nonlinearity (DNL) is specified at ±1 LSB and Integral Nonlinearity (INL) is offered in ±2 LSB (MCP3201-C) version. Communication with the device is done using a simple serial interface compatible with the SPI protocol. The device is capable of sample rates of up to 100ksps at a clock rate of 1.6MHz. This device operates over a broad voltage range (2.7 to 5.5V). Low-current design permits operation with typical standby and active current of only 500nA and 300μA, respectively.
- On-chip sample and hold
- Low-power CMOS technology
- Single-ended input
传感与仪器, 自动化与过程控制, 测试与测量, 工业, 计算机和计算机周边, 电机驱动与控制, 机器人, 医用, 车用
