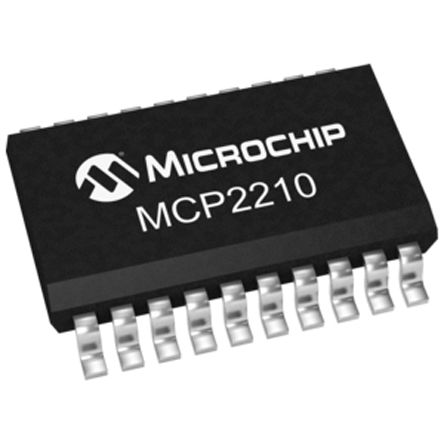

The MCP2210-I/SO is an USB-to-SPI Protocol Converter with general purpose input/output (GPIO) pins. This device is an USB-to-SPI master converter which enables USB connectivity in applications that have a SPI interface. The device reduces external components by integrating the USB termination resistors. It also has 256-byte integrated user EEPROM. It has nine general purpose input/output pins. Seven pins have alternate functions to indicate USB and communication status.
Supports full-speed USB (12Mbps)
128-byte Buffer to handle data throughput
Fully configurable VID and PID assignments and string descriptors
USB 2.0 compliant
USB driver and software support
Uses standard HID drivers (built-in support on Windows? XP, Vista, 7, Linux and Mac OS?)
Configuration utility for device's power-up configuration
Supports all four SPI modes (Mode 0, 1, 2, 3)
Bit rate from 1500 bps up to 12Mbps
256-byte User EEPROM (accessible through certain USB commands)
