EVB9514 -

制造商：

MICROCHIP MICROCHIP

制造商产品编号：

EVB9514

仓库库存编号：

2321379

技术数据表：

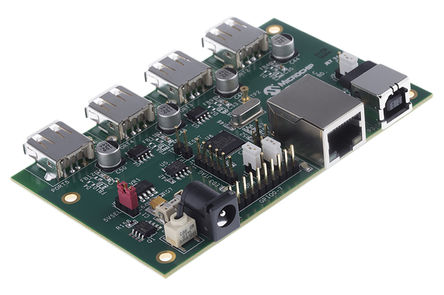

EVB9514 is an evaluation board EVB that utilizes the LAN9514 to provide a four port USB 2.0 hub with an integrated 10/100 Ethernet controller. The EVB9514 provides USB connectivity via one type B upstream USB connector and four type A downstream USB connectors. An RJ-45 integrated magnetics Ethernet jack with link/activity LEDs provides 10/100 Ethernet connectivity. The EVB9514 supports both bus powered and self powered modes of operation. The LAN9514 is a high performance, high speed USB 2.0 hub with a 10/100 Ethernet controller. The EVB9514 includes a 512 x 8 Microwire EEPROM that may be used to automatically load USB descriptors, USB device configuration, and the MAC address upon reset.

• LAN9514 fully integrated 4 port high speed USB 2.0 hub and 10/100 Ethernet controllers
• Ethernet port
• JTAG header
• GPIO header
• 5V power input
• Power switch
