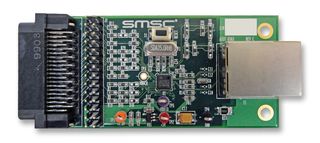

EVB8710 is a PHY evaluation board that interfaces a MAC controller to the LAN8710 Ethernet PHY via a standard 40 pin MII connector. The LAN8710 is connected to an RJ45/Integrated Magnetics Ethernet Jack for 10/100 connectivity. The LAN8710A is a low power, small form factor, highly integrated analog interface IC for high performance embedded Ethernet applications. The LAN8710A requires only a single +3.3V supply and provides an integrated +1.2V supply to run the core digital logic. The LAN8720A is the industry's smallest footprint solutions with up to 40% lower power consumption than existing SMSC transceivers.
Standard RJ45 connector with integrated magnetics and LED indicators for link and activity
On board LED indicators for speed 100 and full duplex
Supports MII and RMII operation
Interfaces through 40 pin connector
Powered by 5.0V from the 40 pin connector
Includes probe points on all MII/RMII data and control signals for troubleshooting
Sources RMII REF_CLK
Supports user configuration options including PHY address selection
