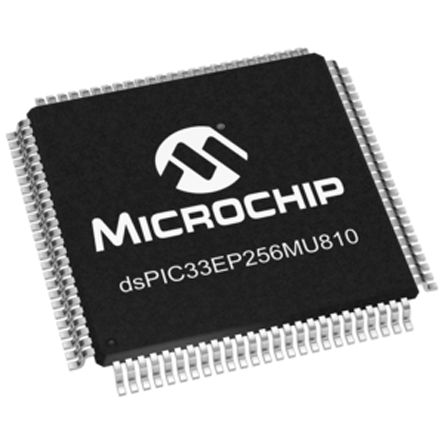

The DSPIC33EP256MU810-I/PF is a 16-bit Digital Signal Controller features a 70MIPS dsPIC? DSC core with integrated DSP and enhanced on-chip peripherals. This DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation, have a great range and extended life. They can be used to control brushless DC, permanent magnet synchronous, AC induction and stepper motors. This device is also ideal for high-performance general purpose applications.
- 16-bit dsPIC33E core
- Modified Harvard architecture
- C compiler optimized instruction set
- 16-bit Wide data path
- 24-bit wide instructions
- 16 x 16 Integer multiply operations
- 32/16 and 16/16 Integer divide operations
- 11 Additional instructions
- Two 40-bit Accumulators with rounding and saturation options
- Flexible and powerful addressing modes
- Single-cycle multiply and accumulate
- Single-cycle shifts for up to 40-bit data
- 16x16 Fractional multiply/divide operations
- Motor control PWM - Two PWM outputs per PWM generator
- Quadrature Encoder Interface (QEI) - 32-bit position counter
- Advanced analogue features - Flexible and independent ADC trigger sources
- 9 16-bit timers/counters, unused output compares can be used as Std. times for a total of 25 timers
- 15-channel DMA with user-selectable priority arbitration
- UART, USB, SPI, ADC, ECAN, IC, OC, timers, DCI/I2S and PMP
电机驱动与控制, 时钟与计时, 电源管理, 通信与网络, HVAC, 消费电子产品, 音频, 工业, 安全, 车用
